Threaded Electric Control Ball Valve
Compact Size, Powerful Control

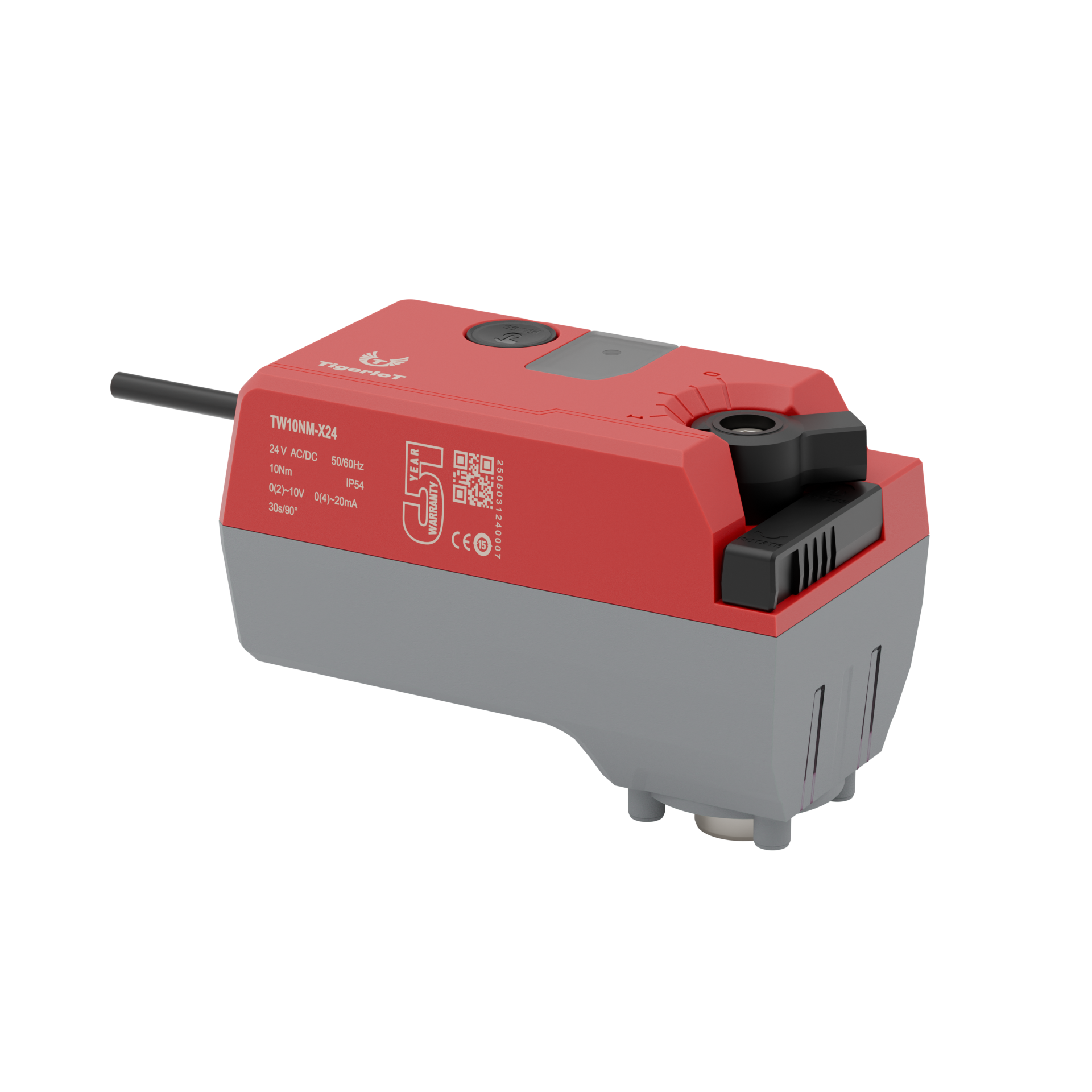

Mini Smart Actuator
Torque: 3 Nm / 5 Nm / 10 Nm
Multiple Signal Input Modes
Supports 0(2)–10 VDC and 0(4)–20 mA signals for seamless integration with PLC, DCS, and other control systems, suitable for various control architectures and on-site requirements.
Dual Fail-Safe Modes: Position Hold & Reset
When the control signal fails or is interrupted, the actuator can be configured to hold its current position or automatically move to a safe position, enhancing overall system safety.
Limit Position Dry Contact Feedback
Provides dry contact feedback at limit positions with dual SPDT dry contacts.
Adjustable Operating Speed
Multiple speed options available: 30 s / 90°, 15 s / 90°, and 4.2 s / 90°, balancing control accuracy and response speed while reducing system impact.
LED Visual Status Window
External LED indicators allow direct visual monitoring of actuator operating status.
IP54 / IP65 Protection Rating
Available with IP54 or IP65 protection ratings, suitable for a wide range of industrial environments.
High-End Ball Valve Actuator — Performance Comparable to Control Valves
电容复位执行器
Configurable Return Position
Return position can be flexibly set to fully open, fully closed, or any intermediate position to meet diverse control requirements.
Capacitor-Based Return Design
Built-in high-performance capacitors enable return operation without external power supply, featuring a compact structure and simplified maintenance.
Stable and Reliable Output Torque
Capacitor-stored energy provides stable return torque, ensuring precise and reliable valve operation.
Fast Response, Energy-Efficient Operation
Capacitors release energy rapidly to enable instant valve actuation, reducing energy consumption and improving control efficiency.
Ultra-Fast Response, Precision Flow Control
- Ultra-fast response enables precise handling of transient thermal load changes
- Enhances overall control stability of liquid cooling systems
- Supports fine-grained cooling for high-density computing environments
- Reduces energy consumption and improves liquid cooling system efficiency
Valve Body
Size Range: DN15–DN50 Pressure Rating: PN25
Equal Percentage Flow Characteristic Curve
The JA-AB port provides excellent control performance with a turndown ratio ≥ 100:1, meeting the requirements for precise flow control.
Zero Leakage Rate
Zero leakage is achieved when the valve is fully closed, effectively preventing energy loss and ensuring system safety and operational stability.
Easy Installation & Maintenance Design
The valve and actuator are connected by a single-screw mounting design, allowing the actuator to be easily installed or removed from the top, significantly reducing installation and maintenance costs.
Stainless Steel Full-Ball Core
The ball core features an integral stainless steel full-ball design with bi-directional sealing and excellent corrosion resistance, suitable for a wide range of demanding applications.
Compact Size · High Accuracy · Intelligent Control
- Brass Body Construction
- Compatible with 3 Nm / 5 Nm / 10 Nm Electric Actuators
- 2-Way Valve, DN15–DN50, PN25； 3-Way Valve, DN15–DN50, PN25
- Standard ISO 7-1 Rp Female Thread Optional: Rc Thread / NPT Thread

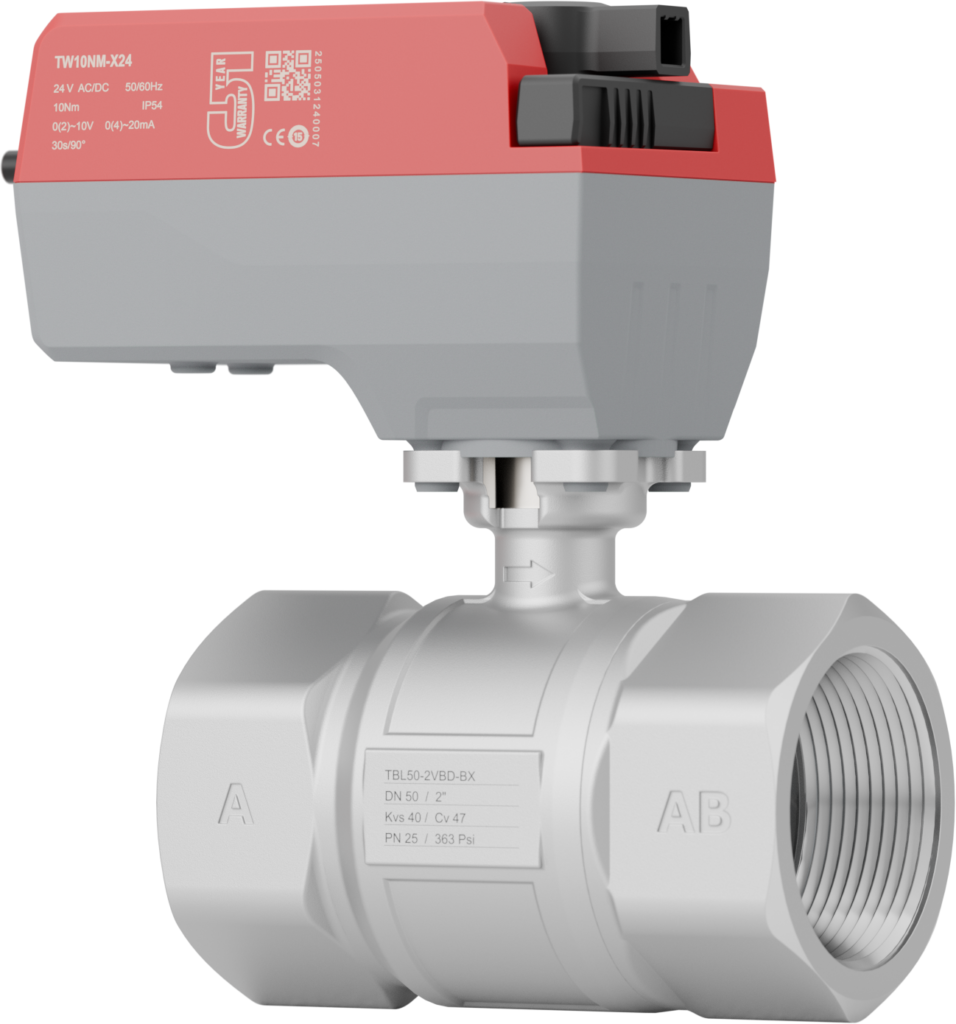

Stainless Steel — Defining a Rust-Free Era
- In high-purity applications such as drinking water, food processing, and pharmaceutical purified water systems, stainless steel effectively prevents corrosion and leaching
- High hardness and excellent corrosion resistance ensure extended service life.
- Significant cost advantages for greater economic efficiency.
- Clean, premium appearance.
Application Scenarios
Liquid Cooling Applications
Energy Storage Systems
