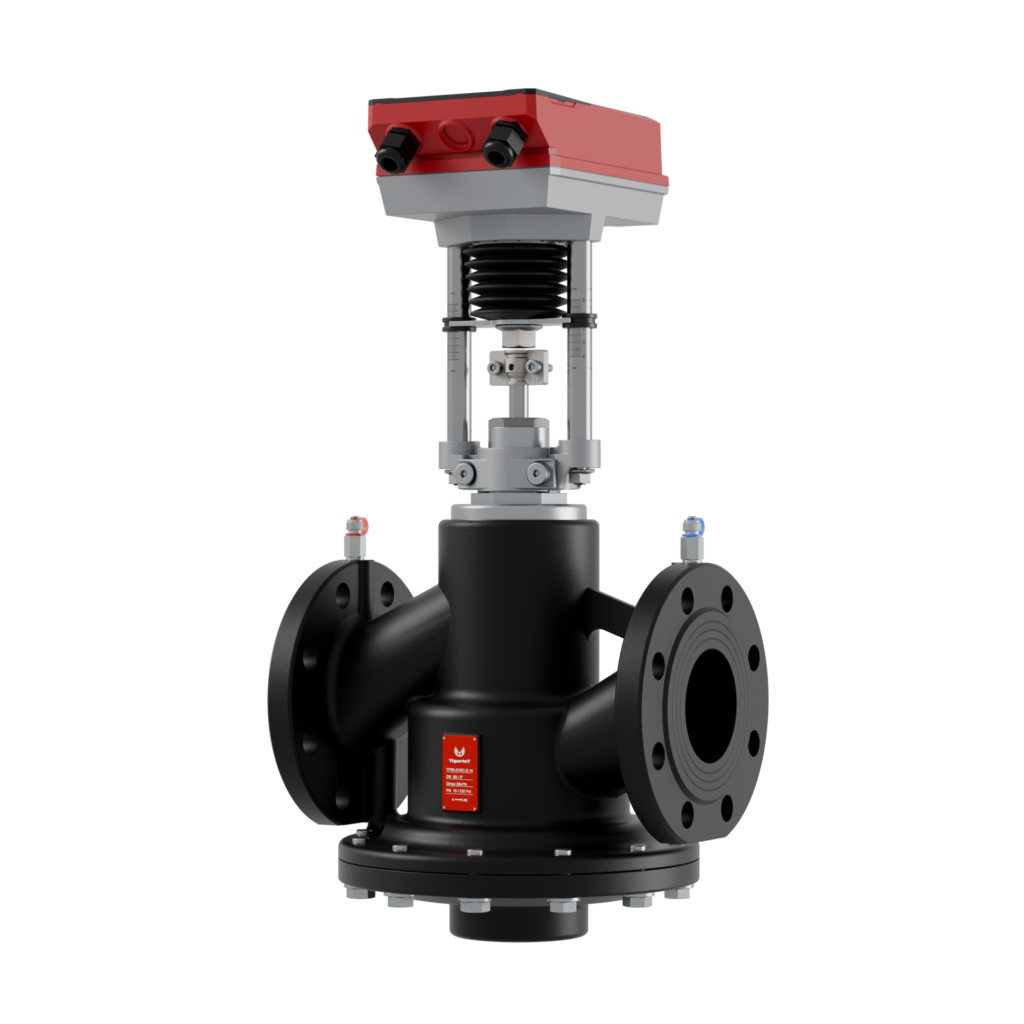

Flanged PICV
High-Precision Flow Balancing for Consistently Stable System Performance
Upgraded Electric Actuator
500N /600N/ 1000N / 3000N / 5000N / 16000N
Integrated Control
Supports integrated proportional regulation and floating control. Combines high-precision control with simplified operation, meeting diverse automation control requirements.
High-Precision Modulating Performance
Expandable RS485 communication interface. Control accuracy up to 0.3%, enabling more precise and stable actuation for demanding applications.
Brushless DC Silent Drive
Adopts brushless DC motor technology for quiet operation, high efficiency, and energy savings. Reliable structure, suitable for long-term continuous operation.
Signal Loss Safety Protection
Equipped with signal-loss fail-safe and hold functions. Actuator status can be flexibly configured according to operating conditions, significantly enhancing system safety and reliability.
Automatic Stroke Calibration, No Manual Adjustment
Built-in automatic stroke calibration. No repeated adjustment required after delivery or installation, greatly reducing installation time and maintenance costs.
IP68 High-Protection Design
The actuator achieves IP68 protection rating, offering excellent dustproof and waterproof performance. Designed for long-term operation in outdoor, humid, and harsh environments, ensuring stable and reliable performance.
5-Year Extended Warranty · Quality Proven Over Time
Industry-leading 5-year full-unit warranty, validated by over 100,000 full-stroke trouble-free operation cycles, providing a solid technical foundation for long-term reliability and peace of mind.
Capacitor Return Actuator
Configurable Return Position
Return position can be flexibly set to fully open, fully closed, or any intermediate position to meet diverse control requirements.
Capacitor-Based Return Design
Built-in high-performance capacitors enable return operation without external power supply, featuring a compact structure and simplified maintenance.
Stable and Reliable Output Torque
Capacitor-stored energy provides stable return torque, ensuring precise and reliable valve operation.
Fast Response, Energy-Efficient Operation
Capacitors release energy rapidly to enable instant valve actuation, reducing energy consumption and improving control efficiency.
Electronic Local Control
- Top-mounted button operation when powered on
- Automatic stroke calibration
- Convenient on-site commissioning and adjustment
Valve Body
Nominal Diameter: DN65–DN250 Pressure Rating: PN16 / PN25
High-Precision Flow Balancing
Built-in dynamic differential pressure balancing cartridge automatically adjusts according to external pressure variations. Maintains a stable differential pressure of 0.5 bar across the electric control valve, ensuring high-precision flow balancing and consistent system operation.
Equal-Percentage Flow Characteristic
Precisely matched with the electric actuator to achieve equal-percentage flow control characteristics. Ensures excellent modulation linearity throughout the full stroke, meeting the accuracy requirements of advanced process control and automation systems.
Metal-to-Metal Sealing · Ultra-Low Leakage
Adopts a stainless steel metal hard-sealing design for stable and reliable sealing performance. Leakage rate ≤ 0.02% of Qmax, effectively reducing system energy losses and suitable for applications with high sealing performance requirements.
High Reliability
Tested through rigorous durability and lifecycle testing. Designed to meet a service life of 100,000 full-stroke cycles, ensuring stable and reliable operation for long-term continuous engineering applications.
Smart App Control · Easier Flow Configuration
- Customized Configuration · Intelligent Integration
- Graphical Interface · Clear at a Glance
- Easy Operation · Efficient and Effortless
- Powerful Functions · Remote Control
- Powerful Functions · Remote Control
Application Scenarios
HVAC Systems
Underfloor Heating / Radiant Heating Systems
Sub-Metering Systems
Building Branch Balancing Control
