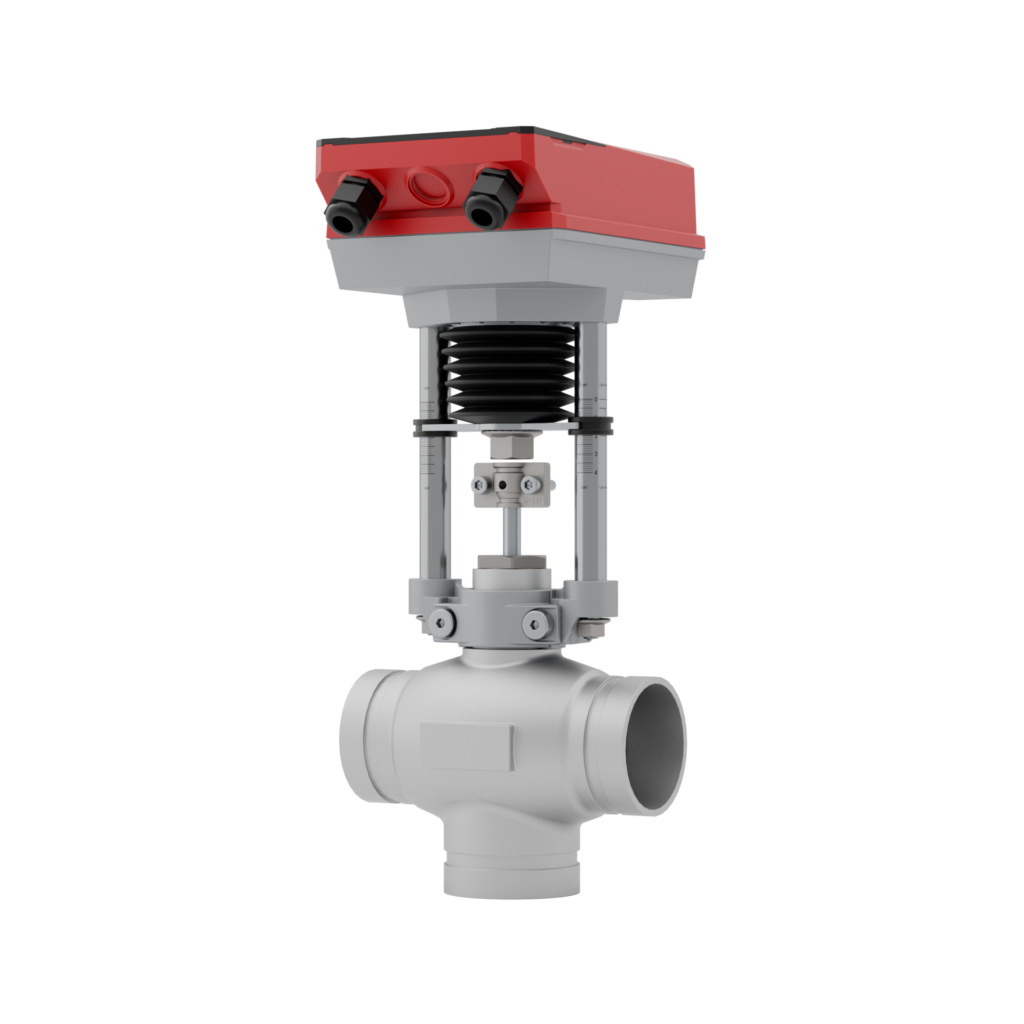

Clamp Electric Globe Control Valve
Tri-Clamp Quick Connection · Time-Saving & Efficient
Upgraded Electric Actuator
500N /600N/ 1000N / 3000N / 5000N / 16000N
Integrated Control
Supports integrated proportional control and floating control. Combines precise modulation with simplified operation to meet diverse automation control requirements.
High-Precision Modulating Performance
Expandable RS485 communication interface. Control accuracy up to 0.3%, enabling finer and more stable actuation for demanding operating conditions.
Brushless DC Silent Drive
Powered by brushless DC motor technology for quiet operation, high efficiency, and energy savings. Robust structure ensures reliable performance during long-term continuous operation.
Signal Loss Safety Protection
Features signal-loss fail-safe and hold functions. Actuator operating status can be flexibly configured according to site conditions, enhancing system safety and reliability.
Automatic Stroke Calibration – No Manual Adjustment
Built-in automatic stroke calibration function. No repeated adjustment required after delivery or installation, significantly reducing installation time and maintenance costs.
IP68 High-Protection Design
The actuator achieves an IP68 protection rating, offering excellent dustproof and waterproof performance. Designed for long-term operation in outdoor, humid, and harsh environments, ensuring stable and reliable operation.
5-Year Extended Warranty · Quality Proven Over Time
Industry-leading 5-year full-unit warranty, validated by over 100,000 full-stroke trouble-free operation cycles, providing a solid technical foundation for long-term reliability and peace of mind.
Capacitor Return Actuator
Configurable Return Position
Return position can be flexibly set to fully open, fully closed, or any intermediate position to meet diverse control requirements.
Capacitor-Based Return Design
Built-in high-performance capacitors enable return operation without external power supply, featuring a compact structure and simplified maintenance.
Stable and Reliable Output Torque
Capacitor-stored energy provides stable return torque, ensuring precise and reliable valve operation.
Fast Response, Energy-Efficient Operation
Capacitors release energy rapidly to enable instant valve actuation, reducing energy consumption and improving control efficiency.
Electronic Local Control
- Top-mounted button operation when powered on
- Automatic stroke calibration
- Convenient on-site commissioning and adjustment

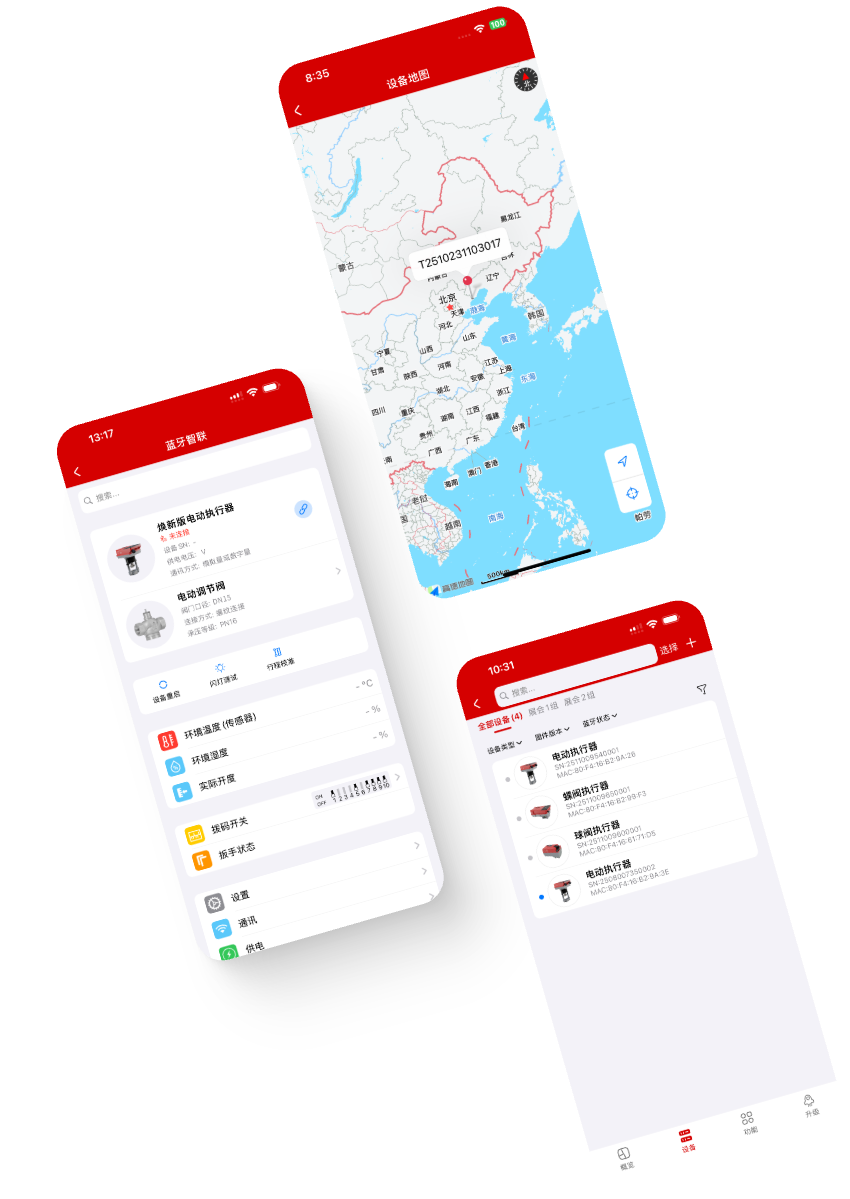

Mobile App · Control Anytime, Anywhere
Fast Bluetooth Connection
Instant plug-and-play via Bluetooth, no wiring or complex configuration required, enabling faster and more efficient on-site commissioning and maintenance.
Real-Time Control & Parameter Configuration
Supports real-time start/stop control, stroke adjustment, and key parameter configuration. Intuitive operation with visualized tuning process improves commissioning accuracy.
Data Synchronization & Historical Records
Operating data is automatically synchronized to the app, supporting historical record queries and comparative analysis for fault diagnosis and performance evaluation.
Field Maintenance-Friendly Design
Clean and intuitive app interface designed around engineers’ workflows, significantly reducing commissioning time and improving on-site operation and maintenance efficiency.
Valve Body
Optimal Control Curve
Equal-percentage control characteristic with a turndown ratio up to 100:1. Delivers excellent control accuracy under both low-flow and high-flow conditions, meeting the demands of precise process control.
Medium Temperature
−40 to 120 °C Suitable for industrial coolants, ethylene glycol, and deionized water.
Stainless Steel Construction
The valve body is precision-machined from high-quality stainless steel. Available in 304 / 316 / 316L, offering excellent corrosion resistance and mechanical strength.
Corrosion-Resistant · Built to Last
Stainless steel construction delivers outstanding corrosion resistance,adapts to a wide range of media and complex operating environments,significantly extending valve service life while reducing maintenance costs.
Performance Advantages
Balanced Valve Plug Design
Reduces the influence of medium pressure on valve opening and closing, enabling a high shut-off differential pressure of up to 16 bar, ensuring stable and reliable operation even under high differential pressure conditions.
Ultra-Low Leakage Sealing Performance
Water valves adopt stainless-steel hard-sealing technology with a leakage rate ≤ 0.01% Kvs. Steam valves use alloy sealing surfaces, achieving ultra-low leakage rates of ≤ 0.001% Kvs.
Equal Percentage Flow Characteristic · Ultra-High Turndown Ratio
The valve features an equal-percentage flow characteristic, providing smooth and linear control across the full stroke, with a turndown ratio greater than 100:1, ideal for precise flow control applications.
Low-Noise Operating Performance
Optimized valve plug structure and flow path design effectively reduce noise and vibration caused by fluid flow, ensuring quiet and stable operation for noise-sensitive environments.
Application Scenarios
Air Conditioning Water Systems
Ventilation Systems
